Catalog

Catalog is the interface to work with a metastore, i.e. a data catalog of database(s), local and external tables, functions, table columns, and temporary views in Spark SQL.

You can access the current catalog using SparkSession.catalog attribute.

import org.apache.spark.sql.SparkSession
val spark: SparkSession = ...

scala> spark.catalog
   lazy val catalog: org.apache.spark.sql.catalog.Catalog

scala> spark.catalog
res0: org.apache.spark.sql.catalog.Catalog = org.apache.spark.sql.internal.CatalogImpl@1b42eb0f

scala> spark.catalog.listTables.show
+------------------+--------+-----------+---------+-----------+
|              name|database|description|tableType|isTemporary|
+------------------+--------+-----------+---------+-----------+
|my_permanent_table| default|       null|  MANAGED|      false|
|              strs|    null|       null|TEMPORARY|       true|
+------------------+--------+-----------+---------+-----------+

scala> spark.catalog.clearCache

The one and only implementation of the Catalog contract is CatalogImpl.

Catalog Contract

package org.apache.spark.sql.catalog

abstract class Catalog {
  def currentDatabase: String
  def setCurrentDatabase(dbName: String): Unit
  def listDatabases(): Dataset[Database]
  def listTables(): Dataset[Table]
  def listTables(dbName: String): Dataset[Table]
  def listFunctions(): Dataset[Function]
  def listFunctions(dbName: String): Dataset[Function]
  def listColumns(tableName: String): Dataset[Column]
  def listColumns(dbName: String, tableName: String): Dataset[Column]
  def createExternalTable(tableName: String, path: String): DataFrame
  def createExternalTable(tableName: String, path: String, source: String): DataFrame
  def createExternalTable(
      tableName: String,
      source: String,
      options: Map[String, String]): DataFrame
  def createExternalTable(
      tableName: String,
      source: String,
      schema: StructType,
      options: Map[String, String]): DataFrame
  def dropTempView(viewName: String): Unit
  def isCached(tableName: String): Boolean
  def cacheTable(tableName: String): Unit
  def uncacheTable(tableName: String): Unit
  def clearCache(): Unit
  def refreshTable(tableName: String): Unit
  def refreshByPath(path: String): Unit
}

CatalogImpl

CatalogImpl is the one and only Catalog that relies on a per-session SessionCatalog (through SparkSession) to obey the Catalog contract.

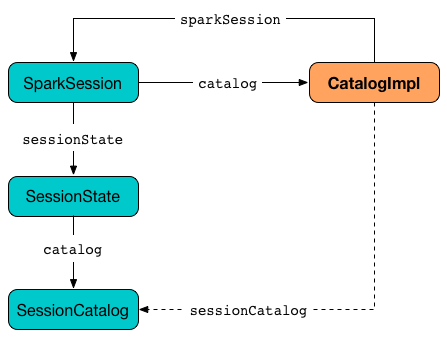

spark sql CatalogImpl.png
Figure 1. CatalogImpl uses SessionCatalog (through SparkSession)

It lives in org.apache.spark.sql.internal package.

Removing All Cached Tables From In-Memory Cache — clearCache Method

clearCache(): Unit

clearCache requests CacheManager to remove all cached tables from in-memory cache.

Note
 clearCache is a part of Catalog Contract.

Creating External Table From Path — createExternalTable Method

createExternalTable(tableName: String, path: String): DataFrame
createExternalTable(tableName: String, path: String, source: String): DataFrame
createExternalTable(
  tableName: String,
  source: String,
  options: Map[String, String]): DataFrame
createExternalTable(
  tableName: String,
  source: String,
  schema: StructType,
  options: Map[String, String]): DataFrame

createExternalTable creates an external table tableName from the given path and returns the corresponding DataFrame.

import org.apache.spark.sql.SparkSession
val spark: SparkSession = ...

val readmeTable = spark.catalog.createExternalTable("readme", "README.md", "text")
readmeTable: org.apache.spark.sql.DataFrame = [value: string]

scala> spark.catalog.listTables.filter(_.name == "readme").show
+------+--------+-----------+---------+-----------+
|  name|database|description|tableType|isTemporary|
+------+--------+-----------+---------+-----------+
|readme| default|       null| EXTERNAL|      false|
+------+--------+-----------+---------+-----------+

scala> sql("select count(*) as count from readme").show(false)
+-----+
|count|
+-----+
|99   |
+-----+

The source input parameter is the name of the data source provider for the table, e.g. parquet, json, text. If not specified, createExternalTable uses spark.sql.sources.default setting to know the data source format.

Note
 source input parameter must not be hive as it leads to a AnalysisException.

createExternalTable sets the mandatory path option when specified explicitly in the input parameter list.

createExternalTable parses tableName into TableIdentifier (using SparkSqlParser). It creates a CatalogTable and then executes (by toRDD) a CreateTable logical plan. The result DataFrame is a Dataset[Row] with the QueryExecution after executing SubqueryAlias logical plan and RowEncoder.

spark sql CatalogImpl createExternalTable.png
Figure 2. CatalogImpl.createExternalTable
